N Series Proportional Output, Single-Phase Solid-State Relay Power Controllers

Phase-Angle Assemblies
Burst Fire Assemblies

  • Panel mount, Proportional output solid state relay / heat sink assemblies

  • LPC series provides a percentage of each AC cycle to the load in direct proportion to analog input signal

  • TP & TPLP series provide a series of full on/off AC cycles to the load in direct proportion to analog input signal

  • Ratings up-to 80 amps @ 24-660Vac in a 40°C ambient

  • 4-20mA input (TPLP) or selectable analog input (LPC & TP); 0-10Vdc, 1-5Vdc, 2-10Vdc, 1-5Vdc, 4-20mA or potentiometer

  • TPLP series (4-20mA input) does not require an external power supply

  • True linear output controller with selectable soft-start,
    suitable for resistive or inductive loads

  • Fully pre-assembled and ready for installation

  • Epoxy-free design eliminates internal stress and enhances life expectancy

  • Direct copper bonding (DCB) substrate for superior thermal performance

  • MTBF > 7 million hours (>800 years)

  • Agency approvals; UL, CSA, VDE/TUV, and CE

Burst Fire Loop Assemblies
Proportional Waveforms.jpg

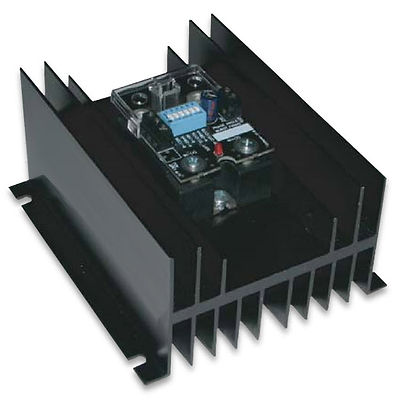

80 amp panel mount proportional output solid state relay heat sink assembly
User Guide
Datasheet

LPC N Series Phase-Angle Controllers

LPC

LPC-50DN

45 Amp / 24-280Vac D2450-10 Solid State Relay Assembly

Operating Voltage

24 - 280Vac

Load Current

.15 - 45 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Phase-Angle

Check Price

LPC-50HDN

45 Amp / 48-530Vac HD4850-10 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 45 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Phase-Angle

Check Price

LPC-90HDN

70 Amp / 48-530Vac HD4890-10 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 70 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Phase-Angle

Check Price

LPC-125HDN

80 Amp / 48-530Vac HD48125-10 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 80 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Phase-Angle

Check Price

Back to Top

User Guide
Datasheet

TP N Series Burst Fire Controllers

TP

TP-50DN

45 Amp / 24-280Vac D2450 Solid State Relay Assembly

Operating Voltage

24 - 280Vac

Load Current

.15 - 45 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Burst Fire

Check Price

TP-50HDN

45 Amp / 48-530Vac HD4850 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 45 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Burst Fire

Check Price

TP-90HDN

70 Amp / 48-530Vac HD4890 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 70 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Burst Fire

Check Price

TP-125HDN

80 Amp / 48-530Vac HD48125 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 80 Amps

Input Type

Analog

Input Mode

Selectable

Output Switching

Burst Fire

Check Price

Back to Top

TPLP N Series Burst Fire Controllers

User Guide
Datasheet
TPLP

TPLP-50DN

45 Amp / 24-280Vac D2450 Solid State Relay Assembly

Operating Voltage

24-280Vac

Load Current

.15 - 45 Amps

Input Type

Analog

Input Mode

4 - 20mA

Output Switching

Burst Fire

Check Price

TPLP-50HDN

45 Amp / 48-530Vac HD4850 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 45 Amps

Input Type

Analog

Input Mode

4 - 20mA

Output Switching

Burst Fire

Check Price

TPLP-90HDN

70 Amp / 48-530Vac HD4890 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 70 Amps

Input Type

Analog

Input Mode

4 - 20mA

Output Switching

Burst Fire

Check Price

TPLP-125HDN

80 Amp / 48-530Vac HD48125 Solid State Relay Assembly

Operating Voltage

48 - 530Vac

Load Current

.15 - 80 Amps

Input Type

Analog

Input Mode

4 - 20mA

Output Switching

Burst Fire

Check Price
