• 35 amp panel mount solid state relay assembly
  • Optional IP40 protective utility box with metallic cable clamps (-HB suffix)
  • Utilizes 1x Crydom D2450 solid-state relay
  • 3-32Vdc input
  • Zero-crossing 24-280Vac / 35A output @ 40C
  • Thermally efficient heat sink to maximize overall product life expectancy
  • Direct-bond copper (DBC) substrate for superior thermal performance
  • Epoxy-free design eliminates stress on internal components due to epoxy expansion and contraction
  • Direct-power lead-frame design reduces solder joints and enhances reliability
  • Touch-safe cover
  • EMC compliant, level 3
  • Agency approvals; UL, CSA, VDE/TUV, and CE

HBC-50DY(-HB) DC Input, 35 Amp / 24-280Vac Solid State Relay Assembly

  • Additional Information:

    In Stock - product normally ships within 24 hours


    Shipping: All website orders >$100 are eligible for free shipping within the United States


    International Shipping: HBControls ships internationally to all non-sanctioned countries


    Discount Codes:

    HBC500 - Enter promo code on checkout to receive a 5% discount on orders ≥$500.

    HBC1K -  Enter promo code on checkout to receive a 10% discount on orders ≥$1,000.


    Please submit a quote request form for volume pricing ≥25 pieces.


    Condition: New / Unused


    Warranty: Additional information is available on the Policies page of our website


    Product Datasheet: HBControls Y Series Power Controllers

  • Product Description:

    The HBControls HBC-50DY power controller is a ready-to-use Crydom D2450 solid state relay pre-assembled onto a compact, thermally efficient panel mount “Y” series heat sink. The HBC-50DY power controller assembly is fully derated to switch AC loads up-to 35 amps at line voltages between 24Vac and 280Vac in a 40°C ambient temperature. This eliminates the need to perform any thermal calculations or heat sink selection. Furthermore, since the D2450 is already assembled onto a specific, custom-designed heat sink, mounting torque and the application of thermal compound are no longer concerns.

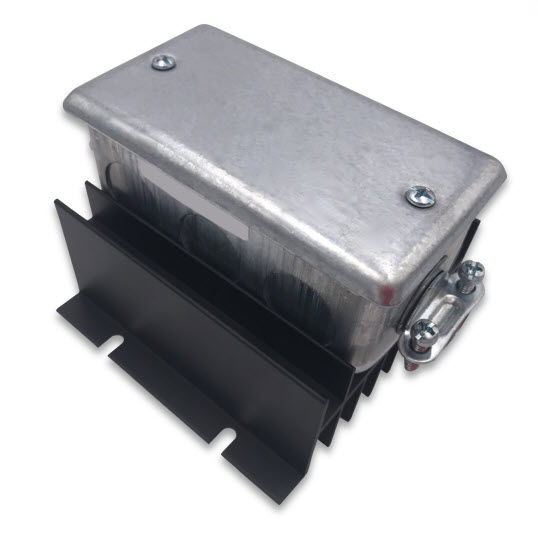

    An optional IP40 utility box (-HB suffix) with metallic cable clamps provides additional protection from accidental contact with exposed terminals.


    The HBC-50DY / D2450 solid state relay can accept control (input) signals between 3Vdc and 32Vdc. When an input signal is applied, the zero-crossing output circuit only conducts load current when the AC mains passes through the zero-crossing point of the sine wave. This minimizes inrush currents and the level of conducted emissions coupled onto the AC mains by the solid state relay.


    The D2450 utilizes rugged back-to-back (inverse parallel) SCRs to switch power to AC loads. This significantly reduces the total power dissipation of the D2450 in comparison to similar triac output solid state relays, in addition to enhancing the relay’s ability to withstand heavy surge currents. This makes the HBC-50DY ideally suited for resistive heating and motor applications, or for switching power to other inductive loads with a power factor >0.5. The typical MTBF (mean time before failure) of the HBC-50DY / D2450 is >7 million hours.


    Features and benefits of the D2450 & HBC-50DY solid state relay power controller include;

    • Direct bond copper (DBC) substrate for superior thermal performance
    • Epoxy-free design to eliminate stress caused by the expansion and contraction of epoxy during normal operation
    • Direct power lead frame design to minimize solder joints in the load-current path
    • SEMS screws and washers for improved pull-out ratings
    • Redesigned solid state relay housing with anti-rotation barriers
    • Shock & vibration resistant to IEC 600068-2-6 & IEC 600068-2-27
    • Agency approvals; cURus, CSA, VDE and CE compliant
    • EMC compliant (level 3)


    Please see the datasheet for additional options, or feel free to contact our technical team at support@hbcontrols.com / 800.879.7918.
